Metal lens focuses beam of terahertz radiation

Tests of a new lens made of 32 metal plates show it outperforms similar silicon and Teflon lenses to focus terahertz radiation.

The journal Nature Scientific Reports published the results.

“Now we can go and make devices that are totally new in the terahertz world.”

“As much as anything else, this paper proves that the technology is feasible,” says Dan Mittleman, an engineering professor at Brown University. “Now we can go and make devices that are totally new in the terahertz world.”

Terahertz radiation (which spans from about 100 to 10,000 GHz) is a relatively unexplored slice of the electromagnetic spectrum, but it holds the promise of countless new imaging applications as well as wireless communication networks with extremely high bandwidth. The problem is that there are few off-the-shelf components available for manipulating terahertz waves.

The new lens—made from 32 metal plates, each 100 microns thick with a 1-millimeter space between each plate—performs as well or better than existing terahertz lenses, and the architecture used to build the device could set the stage for a range of other terahertz components that don’t currently exist.

“Any photonic system that uses terahertz—whether it’s in imaging, wireless communications, or something else—will require lenses,” says Mittleman. “We wanted to look for new ways to focus terahertz radiation.”

[Engineers dare others to build a better terahertz multiplexer]

Most lenses use the refractive properties of a material to focus light energy. Eyeglasses, for example, use convex glass to bend visible light and focus it on a certain spot. But for this new terahertz lens, the properties of the materials used don’t matter as much as the way in which the materials are arranged.

“It’s the architecture here that’s important,” says Rajind Mendis, assistant professor of engineering, who led the study.

The architecture

The plates have semicircular notches of different sizes cut out of one edge, such that when stacked horizontally the notches form a three-dimensional divot on one side of the device.

When a terahertz beam enters the input side of the device, slices of the beam travel through the spaces between the plates. The concave output side of the device bends the beam slices to varying degrees such that the slices are all focused on a certain point.

Using the configuration developed for this new study, the researchers were able to focus a two-centimeter-diameter terahertz beam down to a four-millimeter spot.

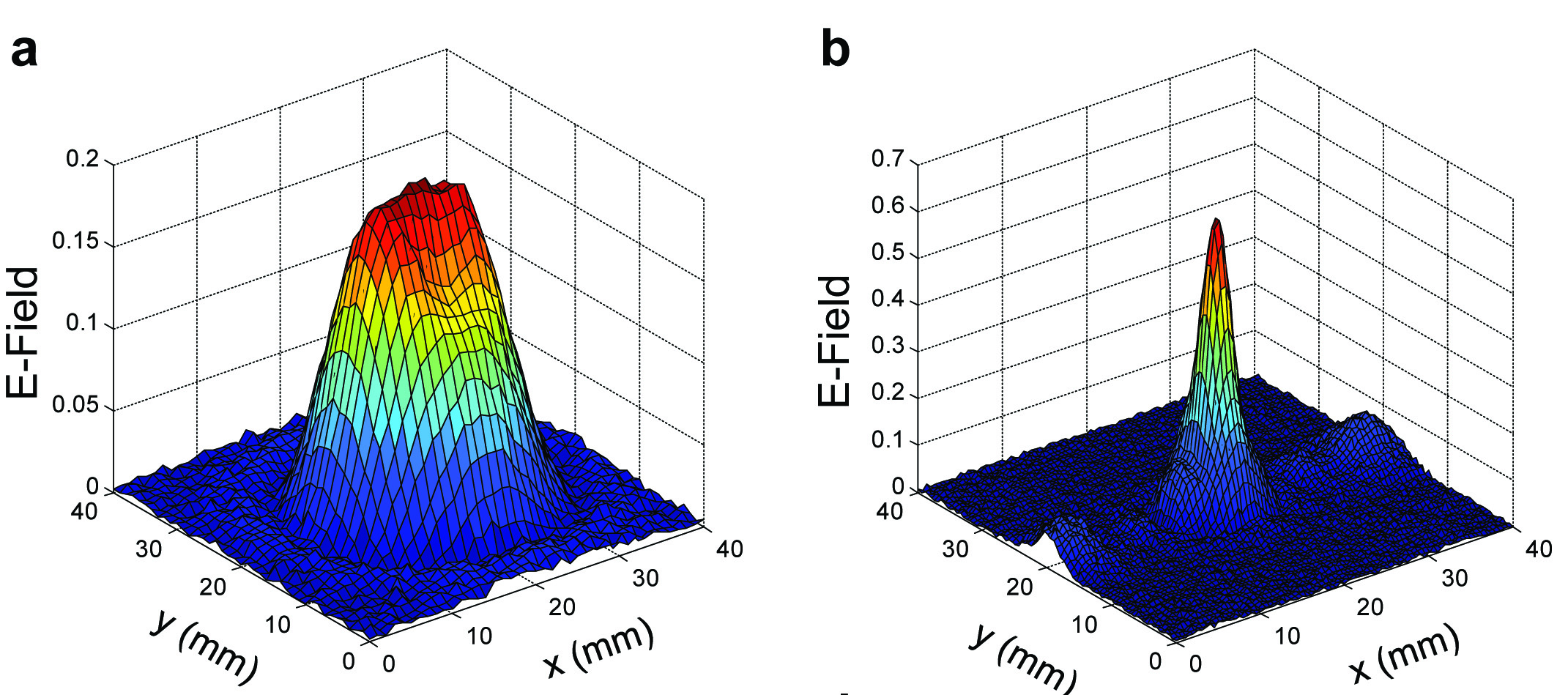

graph of a a two-centimeter beam focused to four millimeters
The image shows a two-centimeter beam focused to four millimeters. (Credit: Mittleman lab/Brown University

The radiation transmission through the device—the amount of radiation that makes it through the spaces as opposed to reflected back toward the source or dissipated inside the device—was about 80 percent. That’s significantly better than silicon lenses, which typically have a transmission loss of about 50 percent, and about the same as lenses made from Teflon.

Better than a ‘chunk of plastic’

The new device has some advantages over existing Teflon lenses, however. In particular, by changing the spacing between the plates, the new device can be calibrated for specific terahertz wavelengths, something that isn’t possible with existing lenses.

“That can be particularly interesting if you want to image things at one frequency and not at others,” Mittleman says. “One of the important things here is that this design offers you a versatility that a simple chunk of plastic with a curved surface doesn’t offer.”

The work also suggests that the technique of using spaced metal plates to manipulate terahertz radiation could be useful in making other types of components that currently don’t exist. Since a metallic architecture mimics a plastic (a dielectric), this material technology is called “artificial dielectrics.”

“As much as anything else, this paper proves that the technology is feasible,” Mittleman says. “Now we can go and make devices that are totally new in the terahertz world.”

Split the beam

The same technology could be used, Mendis says, to make a polarizing beam splitter for terahertz waves—a device that separates waves according to their polarization state. Such a device could be used to implement elementary logic gates for terahertz photonic systems, where the binary (one and zero) logic states are assigned to the two polarization states. That would be an essential component of a terahertz data network.

“The spirit of this work is to develop a new technology for building terahertz components that might be alternatives to things that exist or that might be new,” Mittleman says. “That’s important for the terahertz field because there aren’t a lot of off-the-shelf components yet.”

The National Science Foundation and the Keck Foundation funded the work.

Source: Brown University
